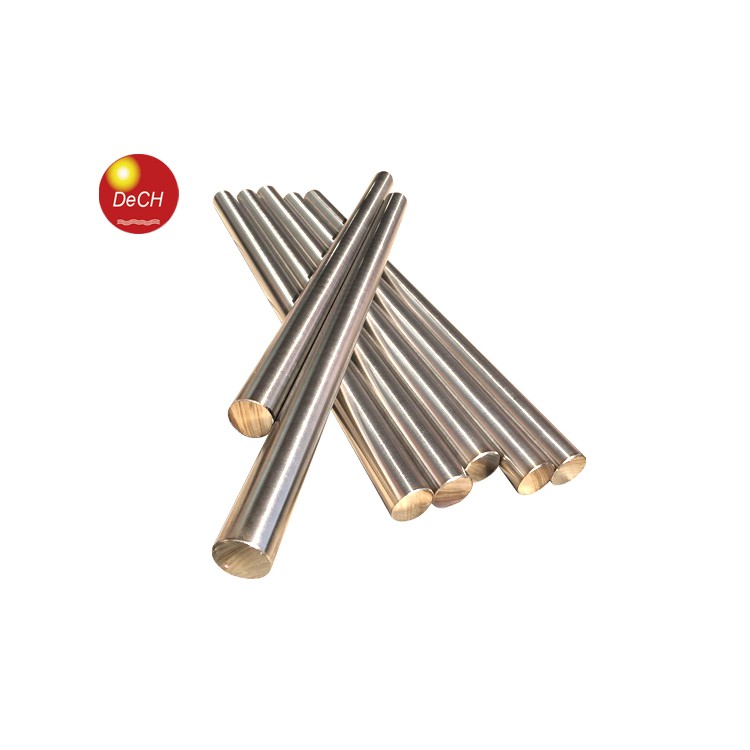

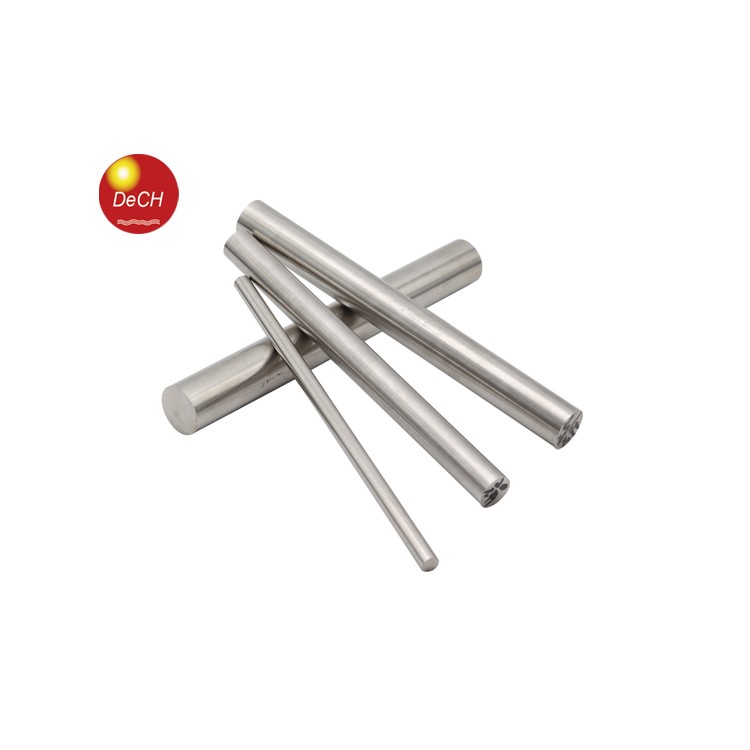

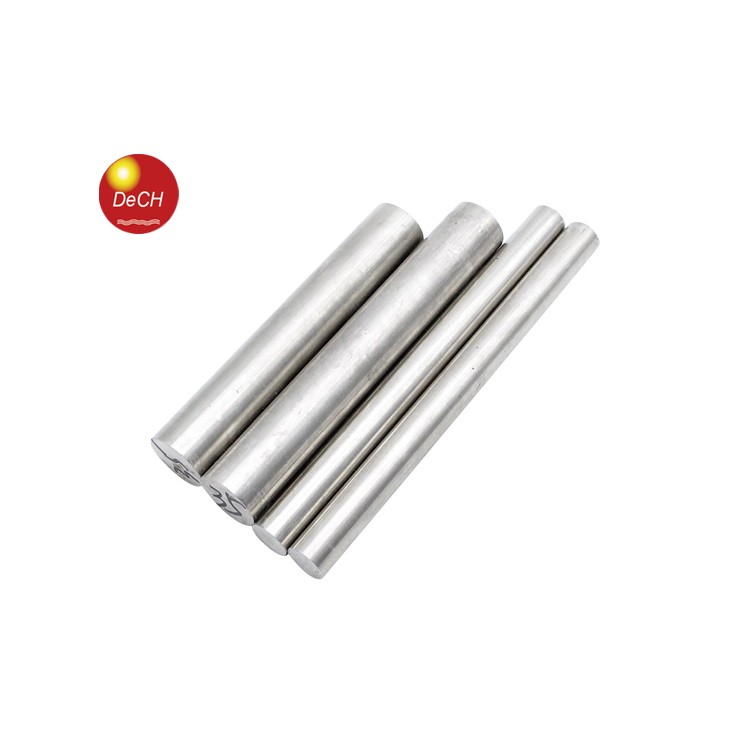

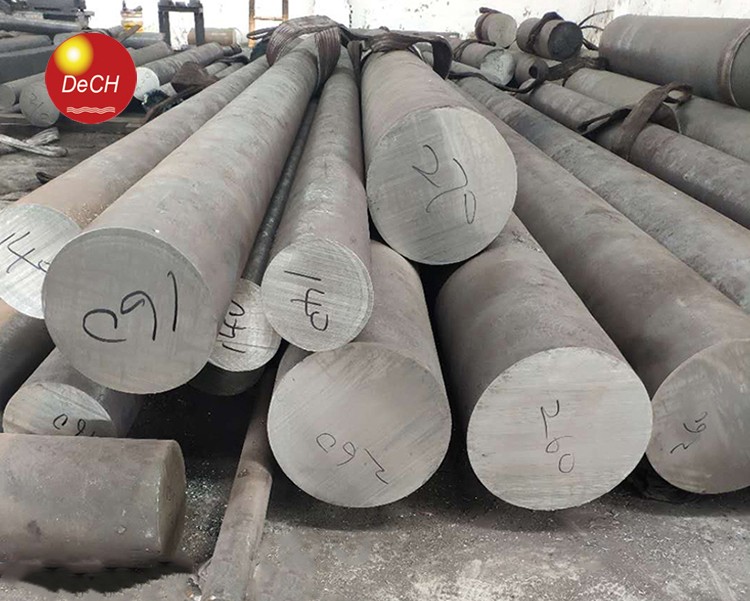

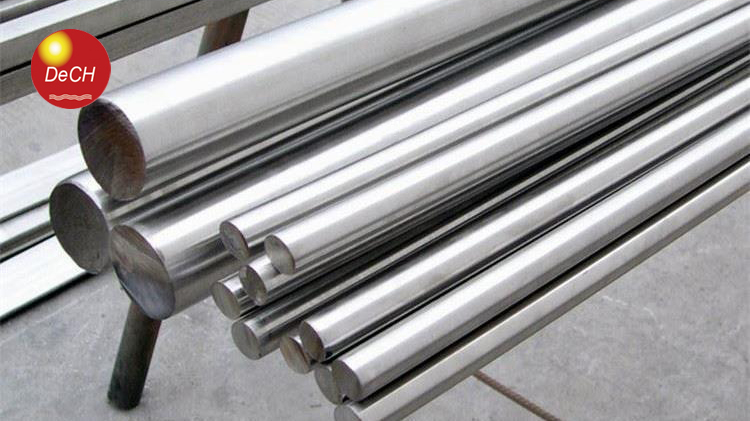

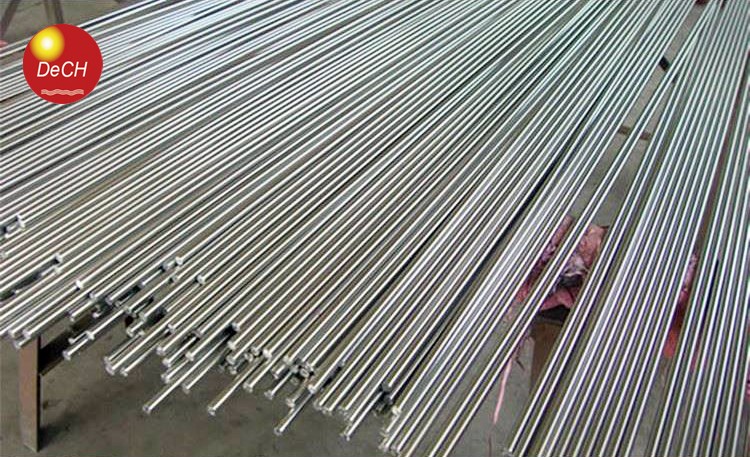

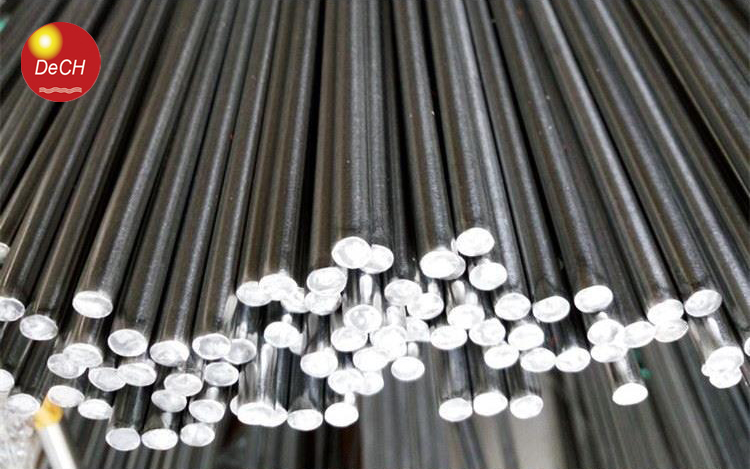

Stainless Steel Bar
Stainless Steel Bar
Stainless Steel Bar -
Stainless Steel Bar
We have 200 Series (201,202 etc.） 300 Series（301，304，304L，301，301S，310，310S，316，316L） 400 Series（410，420，430).We can customize any diameter and length .
| Diameter | Diameter | Diameter | Diameter | Diameter |
| 0.8mm | 2.4mm | 4.8mm | 14mm | 30mm |
| 1mm | 2.5mm | 5mm | 15mm | 32mm |
| 1.1mm | 2.6mm | 5.5mm | 16mm | 35mm |
| 1.2mm | 2.7 mm | 6mm | 17mm | 36mm |
| 1.3mm | 2.8mm | 6.5mm | 18mm | 38mm |
| 1.4mm | 2.9mm | 7mm | 19mm | 40mm |
| 1.5mm | 3mm | 7.5mm | 20mm | 42mm |
| 1.6mm | 3.2mm | 8mm | 21mm | 45mm |
| 1.7mm | 3.3mm | 8.5mm | 22mm | 48mm |
| 1.8mm | 3.5mm | 9 mm | 23mm | 50mm |
| 1.9mm | 3.6mm | 9.5mm | 24mm | 55mm |
| 2mm | 3.8mm | 10mm | 25mm | 60mm |
| 2.1mm | 4mm | 11mm | 26mm | 65mm |
| 2.2mm | 4.2mm | 12mm | 27mm | Other Sizes can be Customized |
| 2.3mm | 4.5mm | 13mm | 28mm |
| Chemical Composition（%） | |||||||||||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | Cu | N | Ti |
| SUS201 | ≤0.15 | ≤0.75 | ≤5.5/7.5 | ≤0.06 | ≤0.030 | 0.8-1.2 | 16-18 | -- | -- | ≤0.25 | -- |
| SUS301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.0-8.0 | 16-18 | -- | -- | ≤0.25 | -- |
| SUS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.0-10.0 | 18/20 | -- | -- | -- | -- |
| SUS310S | ≤0.1 | ≤1.50 | ≤2.00 | ≤0.045 | ≤0.03 | 19-22 | 24-26 | -- | -- | ≤0.10 | -- |
| SUS316L | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.30 | 10-14 | 16-18.5 | 2.0-3.0 | -- | ≤0.11 | -- |
| SUS430 | ≤0.12 | ≤0.750 | ≤1.00 | ≤0.040 | ≤0.030 | ≤0.60 | 16-18 | -- | -- | -- | -- |
| SUS443 | ≤0.015 | ≤1.00 | ≤1.00 | ≤0.04 | ≤0.030 | -- | ≥20 | -- | ≤0.3 | ≤0.025 | ≤0.8 |
| Mechanical Property | |||||
| Grade | Temper | Vickers Hardness | Yield Strength | Tensile Strength | Elongation(%) |
| SUS201 | ANN | <200 | >205 | >515 | >40 |
| 1/4H | 200-250 | >250 | >550 | >35 | |
| 1/2H | 250-310 | >470 | >780 | >6 | |
| 3/4H | 310-370 | >665 | >930 | >3 | |
| H | 370-430 | >880 | >1130 | -- | |
| SUS301 | ANN | <250 | >205 | >520 | >40 |
| 1/4H | 250-310 | >470 | >780 | >35 | |
| 1/2H | 310-370 | >510 | >930 | >10 | |
| 3/4H | 370-430 | >745 | >1130 | >5 | |
| H | 430-490 | >1030 | >1320 | >3 | |
| EH | 490-550 | >1275 | >1570 | -- | |
| SH | >550 | >1500 | >1850 | -- | |
| SUS304 | ANN | <200 | >205 | >520 | >40 |
| 1/4H | 200-250 | >255 | >550 | >35 | |
| 1/2H | 250-310 | >470 | >780 | >6 | |
| 3/4H | 310-370 | >665 | >930 | >3 | |
| H | 370-430 | >880 | >1130 | -- | |
| SUS310S | ≤200 | <200 | >205 | >520 | >40 |
| SUS316L | ≤200 | <200 | >310 | >620 | >40 |
| SUS430 | ANN | <200 | >205 | >450 | >22 |
| 1/2H | 200-250 | >330 | >505 | >10 | |
| H | 250-310 | >420 | >750 | >6 | |
| SUS443 | ANN | <200 | >305 | >483 | >31 |
